Turntable

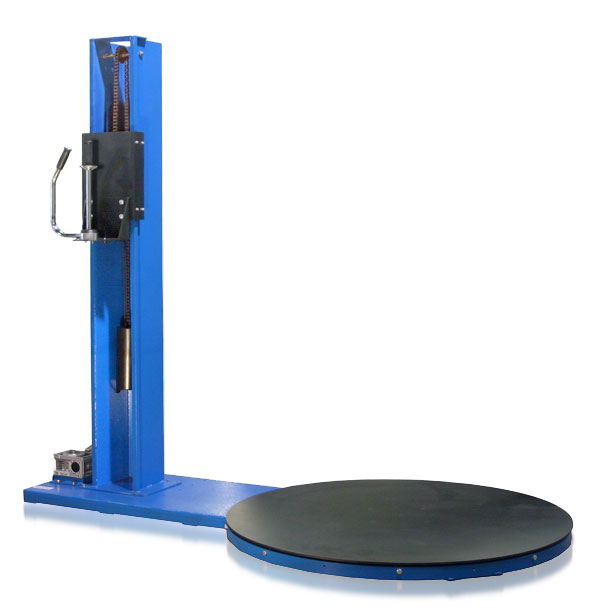

 LOW PROFILE FPS 100









- MANUAL
-
 1-25 LOADS PER HOUR*
- RECOMMENDED FILM: 14-18" HAND FILM
- 59" TURNTABLE
- MAX LOAD SIZE: 55" L x 55" W x 84" H (80" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- CHAIN DRIVE- 1/2HP SCR DRIVE, 20:1 GEARBOX
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 5000LB DYNAMIC WEIGHT CAPACITY- 32 TABLE SUPPORT

  WHEELS
- MANUAL LIFT FRICTION CARRIAGE
- COUNTERBALANCED CARRIAGE, CHAIN LIFT- NO
BELT

  SLIP,TEMP/OIL RESISTANCE, LOW MAINTENANCE
- 115V AC, 15A, 60HZ- PLUG AND PLAY





OPTIONS:


HEIGHT/BASE EXTENSION
LOADING RAMP
HEAVY DUTY LOADING RAMP- FOR
POWERED HAND TRUCKS



View More Detailed Specifications

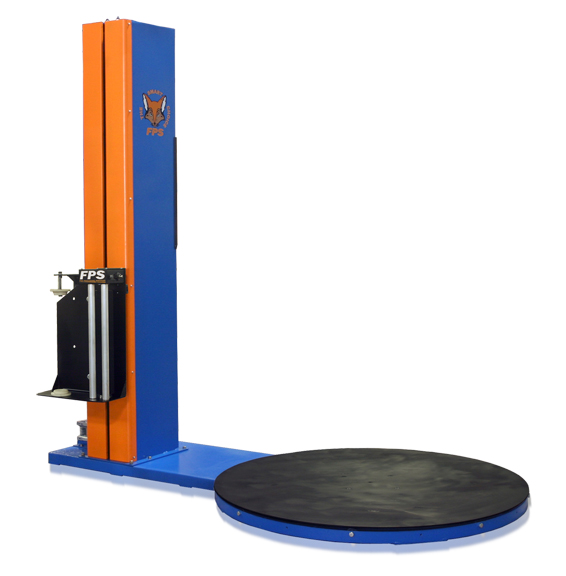

 LOW PROFILE FPS 200



- SEMI AUTOMATIC
- 1-40 LOADS PER HOUR*
- RECOMMENDED FILM: 20" MACHINE FILM
- 59" TURNTABLE
- MAX LOAD SIZE: 55" L x 55" W x 91" H (80" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- TABLE CHAIN DRIVE- 1/2HP SCR DRIVE, 20:1 GEARBOX
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 5000LB DYNAMIC WEIGHT CAPACITY- 32 TABLE

  SUPPORT WHEELS
- SPRING LOAD© DYNAMIC CARRIAGE- NON PRESTRETCH

  (100%+ TENSION STRETCH)
- CARRIAGE CHAIN DRIVE- 1/2HP SCR- NO BELT SLIP,

  TEMP/OIL RESISTANCE, LOW MAINTENANCE
- 115V AC, 15A, 60HZ- PLUG AND PLAY



OPTIONS:


HEIGHT/BASE EXTENSION
LOADING RAMP
HEAVY DUTY LOADING RAMP- FOR POWERED HAND TRUCKS
INTEGRATED SCALE PACKAGE



View More Detailed Specifications

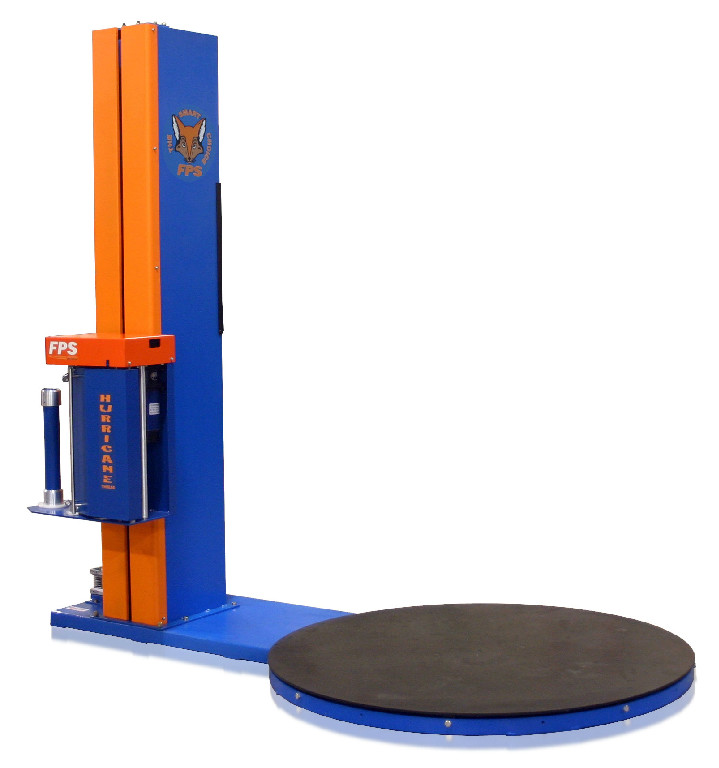

 LOW PROFILE FPS 300



- SEMI AUTOMATIC
- 1-40 LOADS PER HOUR*
- RECOMMENDED FILM: 20" MACHINE FILM, 3" CORE
- 59" TURNTABLE
- MAX LOAD SIZE: 55" L x 55" W x 91" H (80" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- TABLE CHAIN DRIVE- 1/2HP SCR DRIVE, 20:1 GEARBOX
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 5000LB DYNAMIC WEIGHT CAPACITY- 32 TABLE SUPPORT

  WHEELS
- HURRICANE© PRESTRETCH CARRIAGE- 200% FACTORY SET
- CARRIAGE CHAIN DRIVE- 1/2HP SCR- NO BELT SLIP, TEMP/OIL

  RESISTANCE, LOW MAINTENANCE
- 115V AC, 15A, 60HZ- PLUG AND PLAY



OPTIONS:


HEIGHT/BASE EXTENSION
LOADING RAMP
HEAVY DUTY LOADING RAMP- FOR POWERED HAND TRUCKS
INTEGRATED SCALE PACKAGE



View More Detailed Specifications

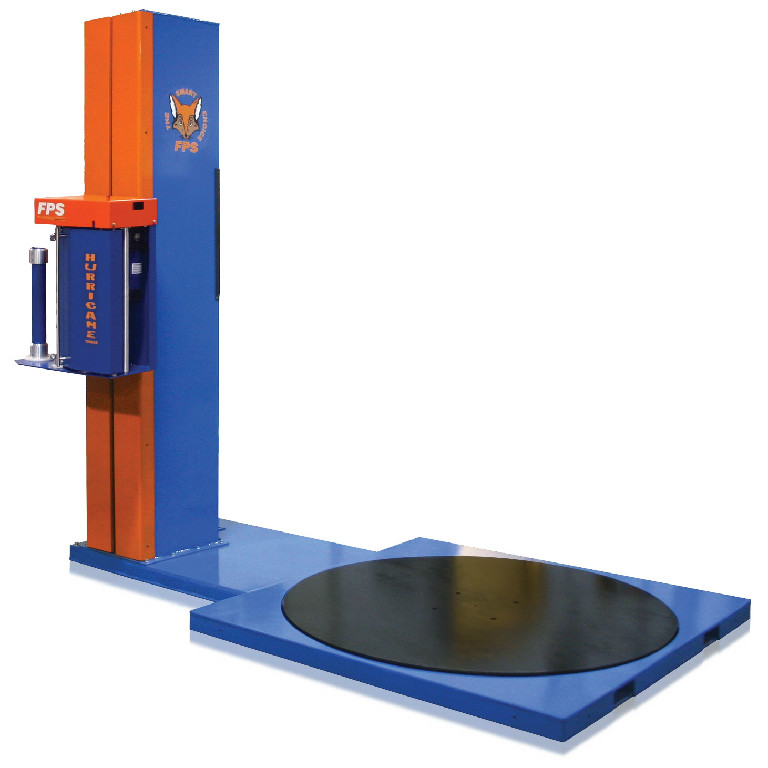

 LOW PROFILE FPS 400L



- SEMI AUTOMATIC
- 1-40 LOADS PER HOUR*
- RECOMMENDED FILM: 20" MACHINE FILM, 3" CORE
- 59" TURNTABLE
- MAX LOAD SIZE: 55" L x 55" W x 91" H (80" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- TABLE CHAIN DRIVE- 1/2HP SCR DRIVE, 20:1 GEARBOX
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 5000LB DYNAMIC WEIGHT CAPACITY- 40 TABLE

  SUPPORT WHEELS
- HURRICANE© PRESTRETCH CARRIAGE- 200%

  FACTORY SET
- CARRIAGE CHAIN DRIVE- 1/2HP SCR- NO BELT SLIP,

  TEMP/OIL RESISTANCE, LOW MAINTENANCE
- 115V AC, 15A, 60HZ- PLUG AND PLAY



OPTIONS:


HEIGHT/BASE EXTENSION
LOADING RAMP
HEAVY DUTY LOADING RAMP- FOR POWERED HAND TRUCKS
RAMP EXTENSION
INTEGRATED SCALE PACKAGE



View More Detailed Specifications



 HIGH PROFILE FPS 400H


- SEMI AUTOMATIC
- 1-40 LOADS PER HOUR*
- RECOMMENDED FILM: 20" MACHINE FILM, 3" CORE
- 59" TURNTABLE
- MAX LOAD SIZE: 55" L x 55" W x 82" H (80" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- TABLE CHAIN DRIVE- 1/2HP SCR DRIVE, 20:1 GEARBOX
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 5000LB DYNAMIC WEIGHT CAPACITY- 4 HEAVY DUTY

  SWIVEL CASTERS
- HURRICANE© PRESTRETCH CARRIAGE- 200%

  FACTORY SET
- CARRIAGE CHAIN DRIVE- 1/2HP SCR- NO BELT SLIP,

  TEMP/OIL RESISTANCE, LOW MAINTENANCE
- 115V AC, 15A, 60HZ- PLUG AND PLAY



OPTIONS:


HEIGHT/BASE EXTENSION
INTEGRATED SCALE PACKAGE



View More Detailed Specifications

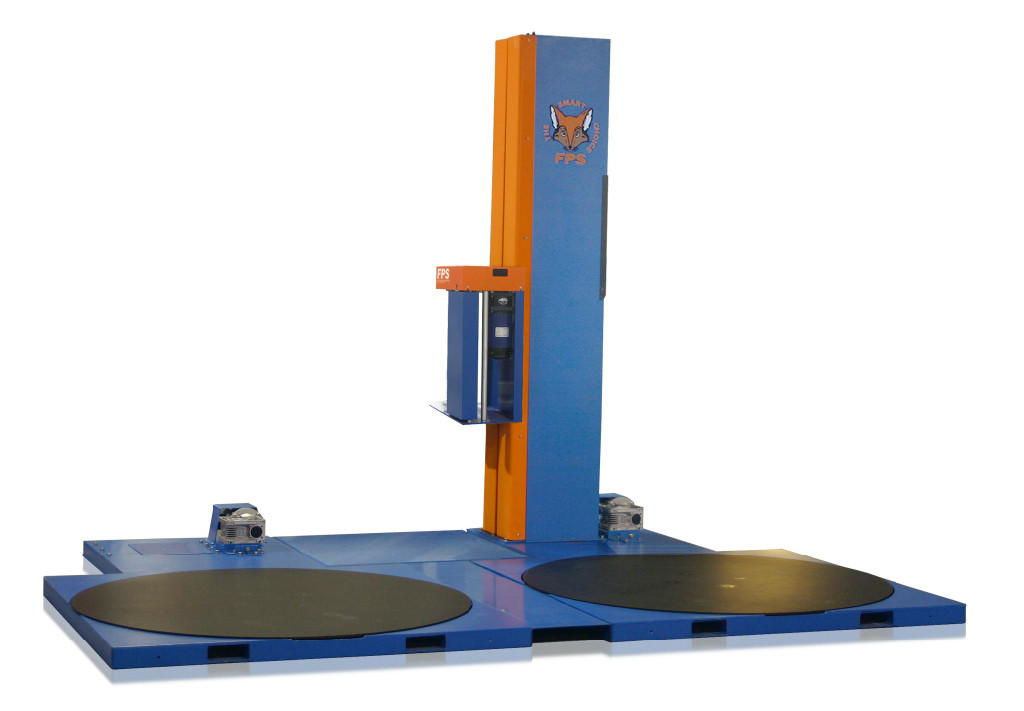

 DUAL TURNTABLE FPS 400LDT


- SEMI AUTOMATIC
- 1-60 LOADS PER HOUR*
- RECOMMENDED FILM: 20" MACHINE FILM, 3" CORE
- 59" TURNTABLE
- MAX LOAD SIZE: 55" L x 55" W x 91" H (80" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- TABLE CHAIN DRIVE- 1/2HP SCR DRIVE, 20:1 GEARBOX
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 5000LB DYNAMIC WEIGHT CAPACITY- 40 TABLE

  SUPPORT WHEELS PER TABLE
- HURRICANE© PRESTRETCH CARRIAGE- 200%

  FACTORY SET
- CARRIAGE CHAIN DRIVE- 1/2HP SCR- NO BELT SLIP,

  TEMP/OIL RESISTANCE, LOW MAINTENANCE
- 115V AC, 15A, 60HZ- PLUG AND PLAY



OPTIONS:


HIGH PROFILE ALSO AVAILABLE (FPS 400HDT)
HEIGHT/BASE EXTENSION
LOADING RAMP
HEAVY DUTY LOADING RAMP- FOR POWERED HAND TRUCKS
RAMP EXTENSION



View More Detailed Specifications



 HEAVY DUTY LOW PROFILE FPS 500L


- SEMI AUTOMATIC
- 1-40 LOADS PER HOUR*
- RECOMMENDED FILM: 20" MACHINE FILM, 3" CORE
- 59" TURNTABLE
- MAX LOAD SIZE: 55" L x 55" W x 91" H (80" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- TABLE CHAIN DRIVE- 3/4HP SCR DRIVE, 20:1 GEARBOX
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 6500LB DYNAMIC WEIGHT CAPACITY- 40 TABLE

  SUPPORT WHEELS
- HURRICANE© PRESTRETCH CARRIAGE- 200%

  FACTORY SET
- CARRIAGE CHAIN DRIVE- 3HP SCR- NO BELT SLIP,

  TEMP/OIL RESISTANCE, LOW MAINTENANCE
- 115V AC, 15A, 60HZ- PLUG AND PLAY



OPTIONS:


HEIGHT/BASE EXTENSION
LOADING RAMP
HEAVY DUTY LOADING RAMP- FOR POWERED HAND TRUCKS
RAMP EXTENSION
INTEGRATED SCALE PACKAGE



View More Detailed Specifications

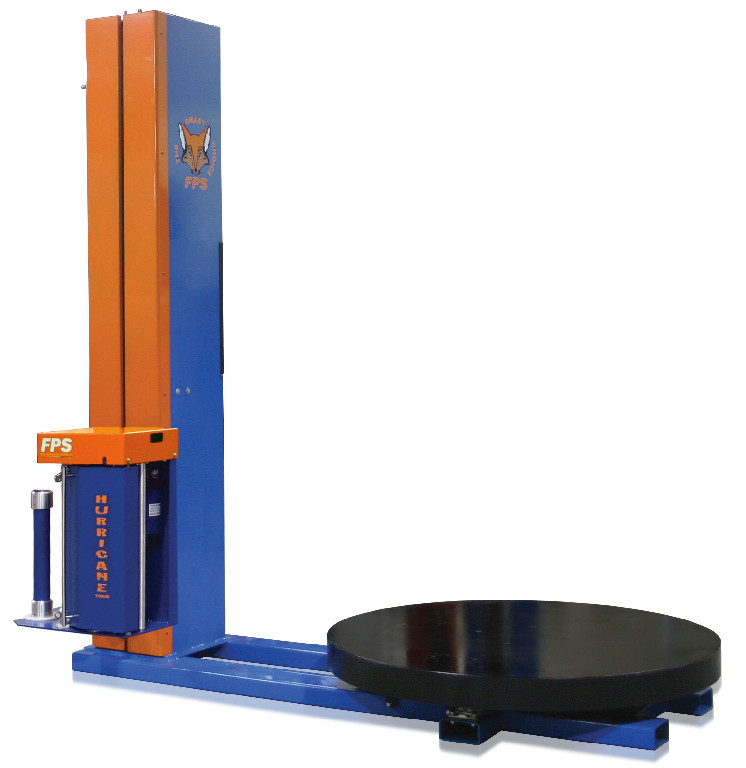

 HEAVY DUTY HIGH PROFILE FPS 500H


- SEMI AUTOMATIC
- 1-40 LOADS PER HOUR*
- RECOMMENDED FILM: 20" MACHINE FILM, 3" CORE
- 59" TURNTABLE
- MAX LOAD SIZE: 55" L x 55" W x 82" H (80" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- DIRECT TABLE DRIVE- RING & PINION GEAR,

  3/4HP SCR DRIVE
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 8000LB DYNAMIC WEIGHT CAPACITY- 3 HEAVY DUTY

  SWIVEL CASTERS, SLEWING RING SUPPORT
- HURRICANE© PRESTRETCH CARRIAGE- 200%

  FACTORY SET
- CARRIAGE CHAIN DRIVE- 1/2HP SCR- NO BELT SLIP,

  TEMP/OIL RESISTANCE, LOW MAINTENANCE
- 115V AC, 15A, 60HZ- PLUG AND PLAY



OPTIONS:


HEIGHT/BASE EXTENSION
INTEGRATED SCALE PACKAGE



View More Detailed Specifications

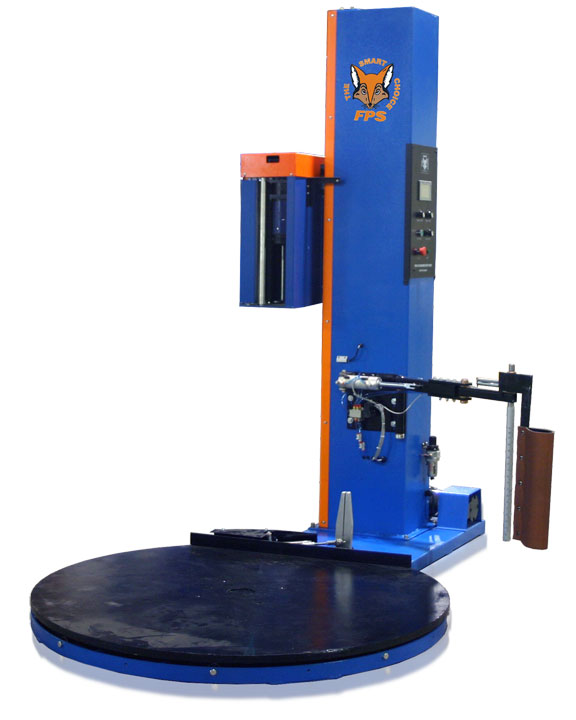

 LOW PROFILE FPS 300PA


- PORTABLE AUTOMATIC
- AUTOMATIC CLAMP, CUT & WIPE
- REMOTE START/STOP
- 1-40 LOADS PER HOUR*
- RECOMMENDED FILM: 20" MACHINE FILM, 3" CORE
- 59" TURNTABLE
- MAX LOAD SIZE: 55" L x 55" W x 91" H (80" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- TABLE CHAIN DRIVE- 1/2HP SCR DRIVE, 20:1 GEARBOX
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 5000LB DYNAMIC WEIGHT CAPACITY- 32 TABLE

  SUPPORT WHEELS
- HURRICANE© PRESTRETCH CARRIAGE- 200%

  FACTORY SET
- CARRIAGE CHAIN DRIVE- 1/2HP SCR- NO BELT SLIP,

  TEMP/OIL RESISTANCE, LOW MAINTENANCE
- 115V AC, 15A, 60HZ- PLUG AND PLAY



OPTIONS:


HEIGHT/BASE EXTENSION
LOADING RAMP
COMBINATION LOADING RAMP- FOR POWERED HAND TRUCKS
SAFETY FENCING
SAFETY LIGHT CURTAINS
INTEGRATED SCALE PACKAGE



View More Detailed Specifications

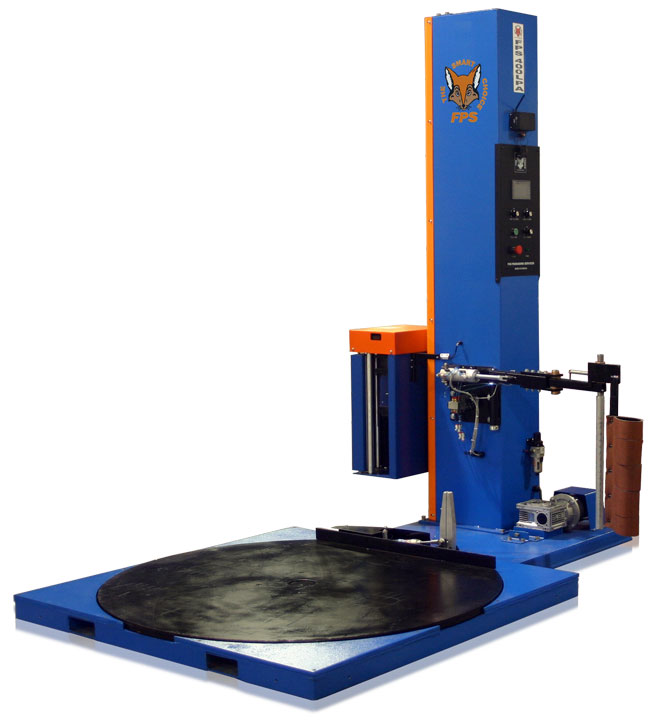

 LOW PROFILE FPS 400LPA


- PORTABLE AUTOMATIC
- AUTOMATIC CLAMP, CUT & WIPE
- REMOTE START/STOP
- 1-40 LOADS PER HOUR*
- RECOMMENDED FILM: 20" MACHINE FILM, 3" CORE
- 59" TURNTABLE
- MAX LOAD SIZE: 55" L x 55" W x 91" H (80" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- TABLE CHAIN DRIVE- 1/2HP SCR DRIVE, 20:1 GEARBOX
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 5000LB DYNAMIC WEIGHT CAPACITY- 40 TABLE

  SUPPORT WHEELS
- HURRICANE© PRESTRETCH CARRIAGE- 200%

  FACTORY SET
- CARRIAGE CHAIN DRIVE- 1/2HP SCR- NO BELT SLIP,

  TEMP/OIL RESISTANCE, LOW MAINTENANCE
- 115V AC, 15A, 60HZ- PLUG AND PLAY



OPTIONS:


HEIGHT/BASE EXTENSION
LOADING RAMP
HEAVY DUTY LOADING RAMP- FOR POWERED HAND TRUCKS
SAFETY FENCING
SAFETY LIGHT CURTAINS
INTEGRATED SCALE PACKAGE



View More Detailed Specifications

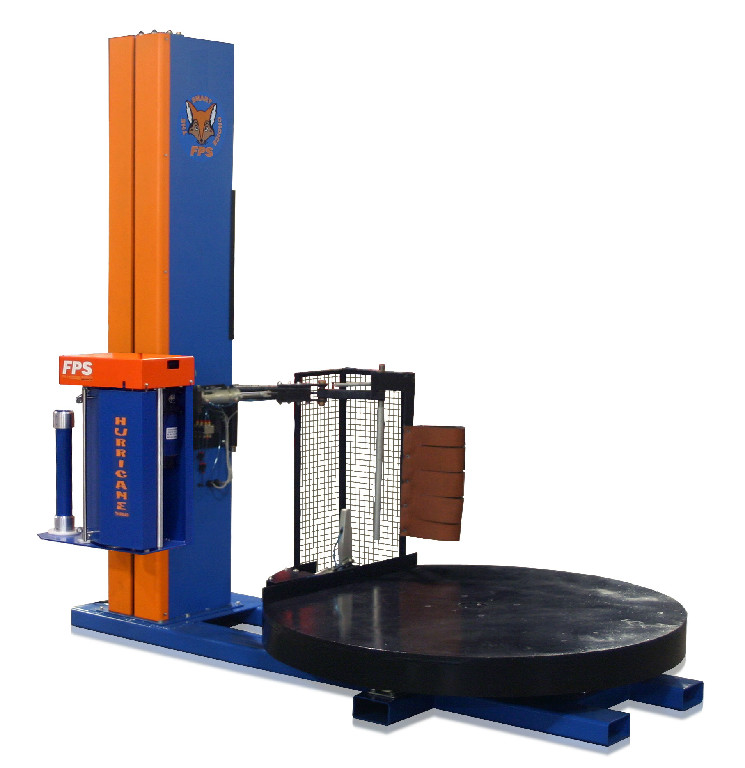

 HIGH PROFILE FPS 400HPA


- PORTABLE AUTOMATIC
- AUTOMATIC CLAMP, CUT & WIPE
- REMOTE START/STOP
- 1-40 LOADS PER HOUR*
- RECOMMENDED FILM: 20" MACHINE FILM, 3" CORE
- 59" TURNTABLE
- MAX LOAD SIZE: 55" L x 55" W x 82" H (80" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- TABLE CHAIN DRIVE- 1/2HP SCR DRIVE, 20:1 GEARBOX
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 5000LB DYNAMIC WEIGHT CAPACITY- 4 HEAVY DUTY

  SWIVEL CASTERS
- HURRICANE© PRESTRETCH CARRIAGE- 200%

  FACTORY SET
- CARRIAGE CHAIN DRIVE- 1/2HP SCR- NO BELT SLIP,

  TEMP/OIL RESISTANCE, LOW MAINTENANCE
- 115V AC, 15A, 60HZ- PLUG AND PLAY



OPTIONS:


HEIGHT/BASE EXTENSION
SAFETY FENCING
SAFETY LIGHT CURTAINS
INTEGRATED SCALE PACKAGE



View More Detailed Specifications

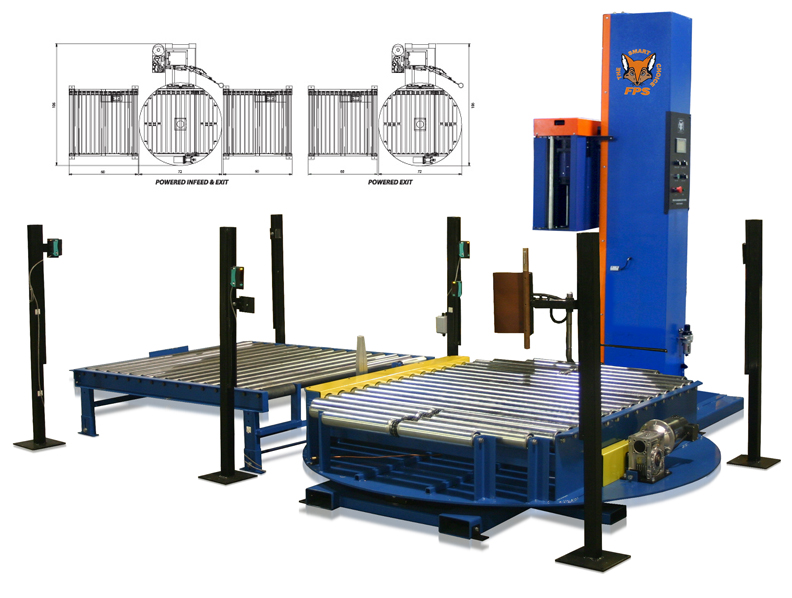

 HIGH PROFILE, CONVEYORS FPS 600


- INLINE AUTOMATIC
- AUTOMATIC CLAMP, CUT & WIPE
- 1-40 LOADS PER HOUR*
- RECOMMENDED FILM: 20" MACHINE FILM, 3" CORE
- MAX LOAD SIZE: 48"L x 48"W x 71"H (68" Diagonal)
- 0-15 RPM TURNTABLE SPEED
- TABLE DIRECT DRIVE- RING & PINION GEAR, 2HP SCR

  DRIVE
- HEAVY DUTY WELDED STEEL CONSTRUCTION
- 4000LB DYNAMIC WEIGHT CAPACITY
- HURRICANE© PRESTRETCH CARRIAGE- 200%

  FACTORY SET
- CARRIAGE CHAIN DRIVE- 1/2HP SCR- NO BELT SLIP,

  TEMP/OIL RESISTANCE, LOW MAINTENANCE



PACKAGES AVAILABLE:


5' GRAVITY OUTFEED CONVEYOR
5' POWERED OUTFEED CONVEYOR
5' POWERED INFEED & 5' POWERED OUTFEED CONVEYOR



OPTIONS:


CUSTOM DESIGNS
SAFETY FENCING
SAFETY LIGHT CURTAINS



View More Detailed Specifications







For Custom Applications & Quotations Call 905-898-2113 or Toll Free 1-888-886-8816
