Mobile Line

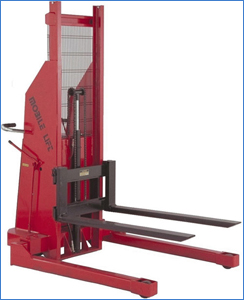

B60CSA ADJUSTABLE STACKER



The Mobile B60CSA Hydraulic Stacker is designed to handle all types



of applications such as lifting and transporting skids, bales, baskets,



etc.; loading and unloading trucks; stocking shelves; die and mold



handling; and can handle all sizes of pallets due to the adjustable



straddle legs. Also available in standard lift heights of 70" and 80".





Specifications:



Load Capacity: 1,500 lbs. / 680 kg

Load Center: 24" / 610 mm

Lowered Height: 3" / 76 mm

Raised Fork Height: 60",70",80"  / 1524 mm,1778 mm, 2032 mm

Overall Mast Height: 71.5", 81", 91"  / 1816mm,2057mm,2311mm

Fork Size: 1.5" x 4" x 42"  / 38mm x 102mm x 1067 mm

Forks Adjust: O.D. 8"-24" / 203mm-610mm

Straddle Legs: I.D. 41"-50" / 864mm-1270mm

Straddle Legs: O.D. 47"-56"/1016mm-1422mm

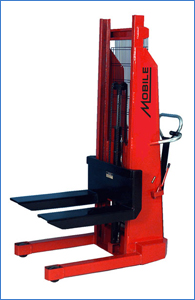

B50WPFF/FP HYDRAULIC STACKER



The Mobile "Work Positioner" Stackers are compact that allow greater



maneuverability in congested areas without sacrificing performance. Their



ergonomic design helps prevent back injuries, bending and straining. The FF



and FP stackers are Fixed Fork and Fixed Platform non-straddle models that



are ideal for feeding presses, cutters, conveyors and machinery.



Specifications:



Load Capacity: 1,500 lbs. / 680 kg

Load Center: 24" / 610 mm

Lowered Height: 4.25 " / 108 mm

Raised Fork Height: 50", 60" / 1270 mm, 1524mm,

Overall Mast Height: 61.5" , 71.5"  / 1562mm,1816mm

Overall Width: 26" / 660mm

Fixed Fork W x L: 7" x 42" / 178mm x 1067mm

Platform Size: 26" x 26" / 660mm x 660mm

Casters: 5" / 127mm

Phenolic Load Wheels: 4" / 102mm Phenolic





B50WPSA / B60WPSA "WORKPOSITIONER"



The Mobile "Work Positioner" Stackers are compact durable products



that allow greater maneuverability in congested areas without



sacrificing performance. The FF and FP stackers are Fixed Fork and



Fixed Platform non-straddle models that are ideal for feeding presses,



cutters, conveyors and machinery; and for transporting materials.





Specifications:



Load Capacity: 1,500 lbs. / 680 kg

Load Center: 24" / 610 mm

Lowered Height: 3" / 76 mm

Raised Fork Height: 50", 60" / 1270 mm, 1524 mm

Overall Mast Height: 61.5" , 71.5" / 1562mm, 1816mm

Fork Width x Length: 3" x 42" / 76mm x 1067mm

Forks Adjust: O.D. 6"-24" / 15mm-610mm

Straddle Legs: I.D. 34"-50" / 864mm-1270mm

Straddle Legs: O.D. 40"-56" / 1016mm-1422mm

                                                                                      Weight: 620lbs. - 630 lbs / 281 kg - 286 kg

                                                                                      Casters: 6" Phenolic / 152 mm

                                                                                      Phenolic Load Wheels: 7" Phenolic / 178 mm Phenolic





SPP45 "PAPER HANDLER" STACKER



Used in the Printing and Bindery Industry, the SPP45 "Paper Handler"



Stacker is designed to handle both the Heidelberg and Komori Paper



Dollies. Its narrow design allows for easy maneuverability as it will fit



any aisle that can handle a Paper Dolly. Combining power lift with



manual push, the SPP45 helps prevent the possibility of physical injury



to the operator due to the bending and lifting required to handle heavy



print jobs.



Specifications:



Load Capacity: 1,000 lbs. / 454 kg

Load Center: 10" / 254 mm

Lowered Height: 3.5" / 89 mm

Overall Width x Length: 26" x 39" / 660 mm, 991mm

Fork Size: 4" x 20.5"/ 102 mm x 521 mm

Raised Fork Height: 45" / 1143mm

Overall Mast Height: 56.5" / 1435 mm

Weight: 500 lbs. / 227 kg

Swivel Casters: 5" / 127mm

Phenolic Load Wheels: 3" / 76mm Phenolic

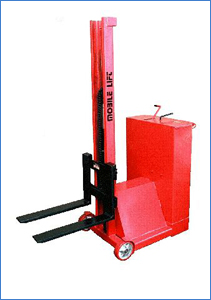

CBS60 "COUNTERBALANCE" STACKER



Unusual applications often require difficult Material Handling solutions. This



challenge has enabled Mobile to be one of the few companies to offer a



Counterbalance Stacker. Ergonomically designed, the CB60 is perfect for



feeding machinery or for loading and unloading docks or trucks where the



normal stacker straddle legs would interfere.



Specifications:



Load Capacity: 1,000 lbs. / 454 kg

Load Center: 13" / 330 mm

Lowered Height: 3" / 76 mm

Raised Fork Height: 60" / 1524 mm

Overall Mast Height: 78" / 1981 mm

Overall Width: 27" / 686mm

Overall Length: 66" / 1676 mm

Forks Adjust O.D. : 8" - 20" / 203 mm - 508 mm

Fork Size: 4" x 26" / 102mm x 660mm

Weight: 1,000 lbs. / 454 kg

Swivel Casters: 5" / 127mm

Phenolic Front Wheels: 7" / 178 mm Polyurethane





FTAFC96 TELESCOPIC STACKER



When a high lift capability is required but aisle space is limited then the



Mobile FTAFC96 Telescopic Hydraulic Stacker is the answer.



Combining power lift with easy to maneuver manual push, the



FTAFC96 is designed to lift Skids, Bales Baskets, etc., is perfect for



racking and shelving applications. as well as loading and unloading



trucks where there are no docks, and can handle Pallets of all sizes



due to the Adjustable Straddle Legs. Also available in standard lift



heights of 120", 132" and 144".



Specifications:



Load Capacity: 1,500 lbs. / 680 kg

Load Center: 24" / 610 mm

Lowered Height: 3" / 76 mm

Raised Fork Height: 96"-120"-132"-144" / 2438 -3048 - 3454 - 3658 mm

Straddle Legs I.D.: 41"- 50" / 864mm - 1270mm

Straddle Legs O.D.: 47"- 56" / 1016mm - 1422 mm

Fork Size: 1.5" x 3" x 42" / 38mm x 76mm x 1067 mm

Weight: 825 - 885 - 910 - 935 lbs. / 374 - 401 - 413 - 424 kg

Steer Wheels: 7" / 178 mm

Phenolic Load Wheels: 4" / 102 mm

Phenolic Lowered Mast Height: 96" - 118" / 2997mm

                                                           120" - 142" / 3607mm

                                                           132" - 87.5" / 3912mm

                                                           144" - 166" / 4216mm





MFS96 "MUFFLER SHOP" STACKER



Designed specifically for the Muffler Shop industry, the MFS96 "Muffler



Shop" Stacker is being used by Speedy/Car-X and Walker Muffler



Shops all over North America. By combining power lift with easy to



maneuver manual push operation, the ergonomic design of the MFS96



helps prevent back injuries attributed to fatigue, bending and straining.



Also, due to its custom design, it eliminates product damage through



improper handling.



Specifications:



Load Capacity: 2,000 lbs. / 907 kg

Load Center: 24" / 610 mm

Lowered Height: 3" / 76 mm

Raised Fork Height: 96" / 2438 mm

Overall Mast Height: 69.5" / 1765 mm

Fixed Straddle Legs: I.D. 50" / 1270 mm

                                                                                     Fixed Stradlle Legs: O.D. 56" / 1422 mm

                                                                                     Fork Size: 1.5" x 3" x 42" / 38 x 76 x 1067 mm

                                                                                     Forks Adjust OD.: 6" - 25" / 152 mm - 635 mm

                                                                                     Weight: 925 lbs. / 420 kg

                                                                                     Steer Wheels: 7" / 178 mm

                                                                                     Phenolic Load Wheels: 7" / 178 mm Phenolic

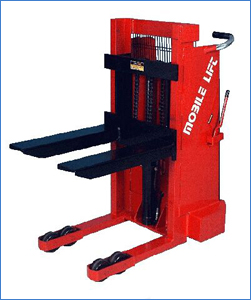

SSL40 "SHOPLIFTER" STACKER



The Mobile "Shoplifter" Stacker is designed for applications in tight,



compact areas. This manual push, power lift unit allows the operator



to increase productivity while reducing fatigue and injury caused by



lifting. Featuring a fork over straddle design, the SSL40 is ideal for



lifting skids and other bottomless containers. Machine shops and



warehouses utilize this unit for transporting parts and small products.



Combining ergonomics and efficiency, the SSL40 is easy to operate,



requires minimum maintenance and is extremely durable.



Specifications:



Load Capacity: 1,500 lbs. / 680 kg

Load Center: 10" / 254 mm

Lowered Height: 3.25 " / 83 mm

Raised Fork Height: 40" / 1016 mm

Fork Width x Length: 6" x 18" / 152mm x 457mm

Overall Mast Height: 49.5" / 1257mm

Overall Width x Length: 25" x 35" / 635mm x 889 mm

Weight: 500lbs. / 227 kg

Swivel Casters: 5" / 127mm

Phenolic Load Wheels: 3" / 76mm Phenolic

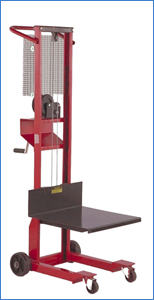

MW500 MANUAL WINCH STACKER



The Mobile MW500 Winch Stacker is a versatile piece of equipment that can be used



in the upright position or tilted back to climb stairs or obstructions. Simple to



operate, the MW500 features four wheel, easy to maneuver steering and an easy to



turn hand winch with an automatic brake system.





Specifications:



Load Capacity: 500 lbs. / 227 kg

Load Center: 10" / 254 mm

Lowered Height: 4" / 102 mm

Raised Fork Height: 54" / 1372 mm

Platform Size: 20" x 20" 508mm x 508mm

Weight: 98 lbs. / 44 kg

Front Casters: 3" / 76 mm

Phenolic Rear Wheels: 6" x 2" Phenolic 152 mm x 50 mm Phenolic

Lowered Mast Height: 62" / 1575mm

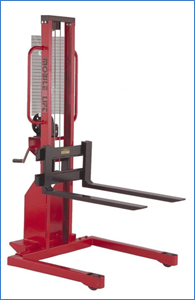

MW750 MANUAL WINCH STACKER



The Mobile MW750 is a compact truck that is ideal for loading and unloading



trucks where docks do not exist. A favorite with the auto industry for handling



engines and transmissions. This model features adjustable straddle legs which



provides an economic alternative for lifting pallets of all sizes without sacrificing



ergonomics.



Specifications:



Load Capacity: 750 lbs. / 340 kg

Load Center: 24" / 610 mm

Lowered Height: 3 " / 76 mm

Raised Fork Height: 60" / 1524 mm

Forks Adjust: O.D. 6" x 24 " 152mm x 610mm

Fork Size: 1.5" x 3" x 36" / 38mm x 76mm x 914mm

Weight: 355lb / 161 kg

Rear Swivel Casters: 4" / 102mm

Phenolic Load Rollers: 4" / 102mm

Phenolic Lowered Mast Height: 75" / 1905mm

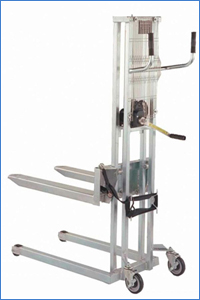

MW-LL GALVANIZED WINCH STACKER



The Mobile MW750 is a compact truck that is ideal for loading and unloading



trucks where docks do not exist. A favorite with the auto industry for handling



engines and transmissions. This model features adjustable straddle legs which



provides an economic alternative for lifting pallets of all sizes without



sacrificing ergonomics.





Specifications:



Load Capacity: 575 lbs. / 261 kg

Lowered Fork Height: 3.25" / 83 mm

Raised Fork Height: 55" / 1397 mm

Overall Mast Height: 64" / 1626 mm

Fork Length x Width: 33" x 4" /  838mm x 102mm

Fork I.D. x O.D.: 12.5" I.D x 20.5" O.D /  318mm I.D. x 521 mm O.D.

Weight: 145lb / 66 kg

Steer Wheels: 5" / 127mm

Phenolic Load Rollers: 3" / 76mm Phenolic

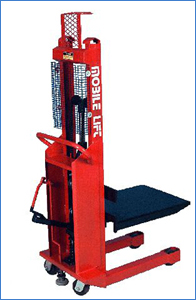

SPL50 "PEDALIFTER" STACKER



The Mobile "Pedalifter" Stacker is a compact unit that can handle heavy duty



applications and still fit through most standard doors. The SPL50 features a



manual push, foot pump lift design which provides dependable lifting capability



at the most economical price, and comes complete with a floor lock brake and



safety cage as standard features. Featuring the same durable construction as



the Mobile battery operated Stackers, this model offers continuous



performance and can be custom designed to suit specific applications.



Specifications:



Load Capacity: 1000 lbs. / 454 kg

Load Center: 20" / 508 mm

Lowered Fork Height: 55" / 1397 mm

Overall Mast Height: 3" / 76 mm

Platform Width x Length: 18" x 24" 457mm x 610mm

Overall Width x Length: 28" x 40" 711mm x 1016 mm

Raised Fork Height: 50" / 1270 mm

Weight: 350 lbs / 612 kg

Casters: 5" / 127 mm

Phenolic Front Wheels: 4" / 102 mm Phenolic



For Pricing and Availability Call 905-898-2113 or Toll Free 1-888-886-8816
