Eco LIne

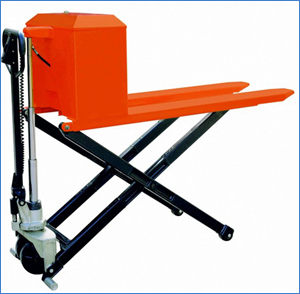

EBSL22 ECO BATTERY SCISSOR LIFT



The ECO EBSL22 Battery Scissor Lift is a battery operated



high lift truck designed to handle applications such as lifting



and transporting skids and bottomless containers, loading and



unloading conveyor systems, and is perfectly suited for use



as a work station.





Specifications:



Load Capacity: 2,200 lbs. / 1000 kg

Lowered Height: 3.3" / 84 mm

Raised Height: 31.5" / 800 mm

Overall Fork Width: 27" / 686mm

Fork Width x Length: 6.3" x 45" / 160mm x 1143mm

Steer Wheels: 7" x 2" Phenolic / 178mm x 51mm

Phenolic Rollers: 3" x 2" / 76mm x 51mm Nylon

Weight: 535lbs / 1150kg

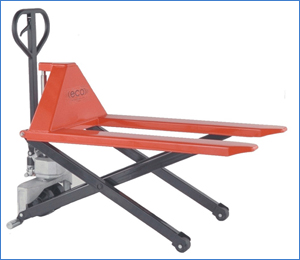

EMSL22 ECO MANUAL SCISSOR LIFT



The ECO EMSL22 Manual Scissor Lift is a manually operated



high lift truck designed to handle applications such as lifting



and transporting skids and bottomless containers, loading and



unloading conveyor systems, and is perfectly suited for use as



a work station.



 Specifications:



Load Capacity: 2,200 lbs. / 1000 kg

Lowered Height: 3.3" / 84 mm

Raised Height: 31.5" / 800 mm

Load Center: 26.75" / 680 mm

Overall Fork Width: 27" / 686mm

Fork Width x Length: 6.3" x 45" / 160mm x 1143mm

Steer Wheels: 7" x 2" Phenolic / 178mm x 51mm

Phenolic Rollers: 3" x 2" / 76mm x 51mm Nylon

Weight: 535lbs / 1150kg



For Pricing and Availability Call 905-898-2113 or Toll Free 1-888-886-8816
