Eco Line Lift Tables

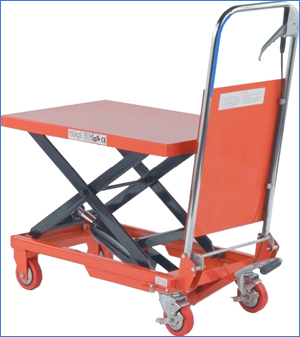

ELT330 ECO LIFT TABLE



- Lift & Transport design



- Upper lifting limit bypass



- Polyurethane fixed & swivel wheels



- Dual Brake system







Specifications:



Load Capacity: 330 lbs. / 150 kg

Lowered Height: 8.75" / 222 mm

Raised Height: 29.5" / 749 mm

Table Size W x L: 17.75" x 27.5" / 451mm x 699 mm

Overall Size W x L: 17.75" x 35" / 451mm x 889mm

Weight: 101 lbs / 46kg

Handle Height: 38" / 965mm

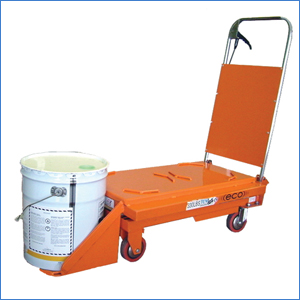

ELT330-PC ECO PAINT CART TABLE



- Lift & Transport design



- Upper lifting limit bypass



- Polyurethane fixed & swivel wheels



- Dual Brake system







Specifications:



Load Capacity: 330lbs. / 150 kg

Lowered Height: 8.75" / 222 mm

Raised Height: 29.5" / 750 mm

Table Size W x L: 17.75" x 27.5" / 451mm x 699 mm

Bucket Size W x L: 12" x 10" / 305mm x 254mm

Weight: 115 lbs / 52kg

Bucket Raised Height: 20" / 508mm

Wheel: 4" / 102mm Phenolic

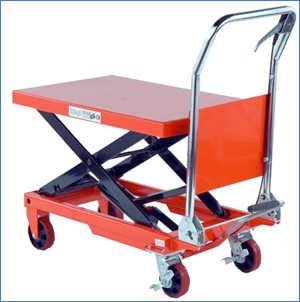

ELT660 ECO LIFT TABLE



- Lift & Transport design



- Upper lifting limit bypass



- Polyurethane fixed & swivel wheels



- Dual Brake system







Specifications:



Load Capacity: 660 lbs. / 300 kg

Lowered Height: 11" / 279 mm

Raised Height: 35.5" / 902 mm

Table Size W x L: 19.75" x 32" / 502mm x 813 mm

Overall Size W x L: 19.75" x 41" / 502mm x 1041mm

Weight: 165 lbs / 75kg

Handle Height: 39" / 991mm

Wheel: 5" / 127mm Phenolic

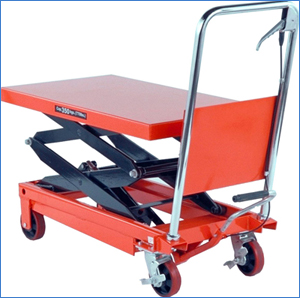

ELT770 ECO LIFT TABLE



- Lift & Transport design



- Upper lifting limit bypass



- Polyurethane fixed & swivel wheels



- Dual Brake system







Specifications:



Load Capacity: 770 lbs. / 350 kg

Lowered Height: 13.5" / 343 mm

Raised Height: 51.5" / 1308 mm

Table Size W x L: 19.75" x 36" / 502mm x 914 mm

Overall Size W x L: 19.75" x 46" / 502mm x 1168mm

Weight: 265 lbs / 120kg

Handle Height: 39" / 991mm

Wheel: 5" / 127mm Phenolic

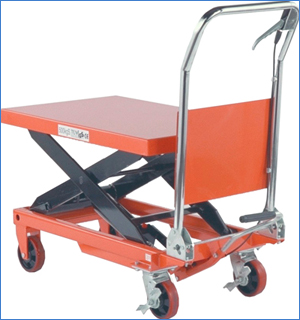

ELT1100 ECO LIFT TABLE



- Lift & Transport design



- Upper lifting limit bypass



- Polyurethane fixed & swivel wheels



- Dual Brake system







Specifications:



Load Capacity: 1100lbs. / 500 kg

Lowered Height: 8.75" / 222 mm

Raised Height: 35.5" / 902 mm

Table Size W x L: 19.75" x 32" / 502mm x 813 mm

Overall Size W x L: 19.75" x 46" / 502mm x 1168mm

Weight: 187 lbs / 85kg

Handle Height: 39" / 991mm

Wheel: 5" / 127mm Phenolic

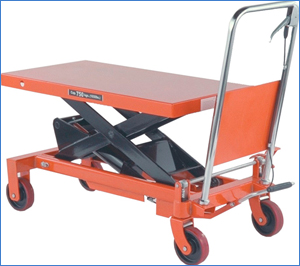

ELT1650 ECO LIFT TABLE



- Lift & Transport design



- Upper lifting limit bypass



- Polyurethane fixed & swivel wheels



- Dual Brake system





Specifications:



Load Capacity: 1650lbs. / 750 kg

Lowered Height: 16.25" / 413 mm

Raised Height: 40" / 1016 mm

Table Size W x L: 20" x 39.25" / 508mm x 1003 mm

Overall Size W x L: 22.5" x 52" / 572mm x 1321mm

Weight: 254 lbs / 115kg

Handle Height: 39" / 991mm

Wheel: 5" / 127mm Phenolic



For Pricing and Availability Call 905-898-2113 or Toll Free 1-888-886-8816
