Eco Line

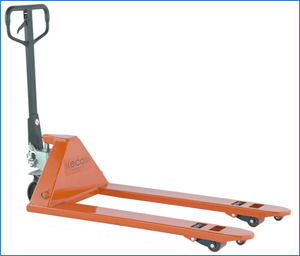

ECO I-55 Pallet Truck



An economic alternative to the MLX55, the I-55 Pallet Truck



features a quality German design pump for long life and easy



field servicing. A 200 degree handle pivot provides exceptional



maneuverability in compact areas and comes with standard



polyurethane wheels and rollers for rolling ease. The I-55



features a powder coat finish, robotic welds throughout, and



grease fittings at all pivot points for easy maintenance.







Specifications:



Load Capacity: 5,500 lbs. / 2500 kg

Fork Length: 48" / 1220 mm

Overall Fork Widths: 20.5" - 27"/ 521- 685 mm

Lowered Fork Height: 2.9" / 75mm

Raised Fork Height: 7.8" / 200mm

Fork Width: 6.5" / 165mm

Weight: 180 lbs. / 85 kgs.

Steer Wheel: 7" / 180mm

Polyurethane Load Rollers: 2.9" / 74 mm





ECO I-55 Galvanized Pallet Truck





For Corrosion Resistant as well as Cold applications Mobile



offers the Galvanized ECO I-55 Pallet Truck that is ideal for



use in freezers with temperatures down to -10 degrees



Fahrenheit, as well as chemical exposure applications.



Hygienic, durable and easy to clean, the ECO I-55 Galvanized



Pallet Truck features 100% Galvanized Pump, Handle, Frame



and components, and Polyurethane Wheels and Rollers.











Specifications:



Load Capacity: 5,500 lbs. / 2500 kg

Fork Length: 48" / 1220 mm

Overall Fork Widths: 20.5" - 27"/ 521- 685 mm

Lowered Fork Height: 2.9" / 75mm

Raised Fork Height: 7.8" / 200mm

Fork Width: 6.5" / 165mm

Weight: 180 lbs. / 85 kgs.

Steer Wheel: 7" / 180mm

Polyurethane Load Rollers: 2.9" / 74 mm

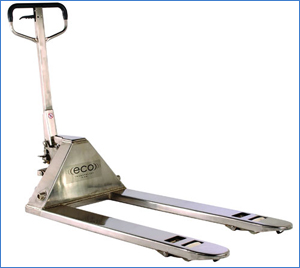

ECO I-55 Stainless Steel



For the ultimate in Corrosion Resistance, Mobile offers the



ECO I-55 Stainless Steel Pallet Truck. This truck features



100% Stainless Steel Pump, Handle, Frame and components



construction, and Polyurethane Wheels and Rollers offering



maximum Corrosion Resistance in chemical, wet or cold



applications.



Specifications:



Load Capacity: 5,500 lbs. / 2500 kg

Fork Length: 48" / 1220 mm Overall

Fork Widths: 20.5" - 27"/ 521- 685 mm

Lowered Fork Height: 2.9" / 75mm

Raised Fork Height: 7.8" / 200mm

Fork Width: 6.5" / 165mm

Weight: 180 lbs. / 85 kgs.

Steer Wheel: 7" / 180mm

Polyurethane Load Rollers: 2.9" / 74 mm

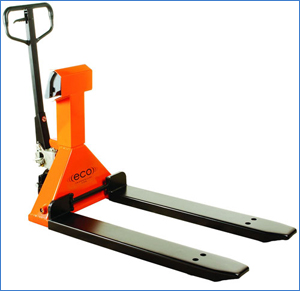

ECO I-55 Weigh Scale



-Pallet Truck with scale allows operator to lift, weigh and



transport loads



-Keypad and automatic tare functions



-Large LCD display shows all measurements in clear, readable



numbers even in dim lighting



-Uses either internal or external power supply



-Readout available in pounds or kilograms















Specifications:



Load Capacity: 4,000 lbs. / 1814 kg

Fork Length: 45" / 1143 mm

Overall Fork Widths: 21.5" - 27.75" 546- 705 mm

Lowered Fork Height: 2.9" / 75mm

Raised Fork Height: 7.8" / 200mm

Fork Width: 6.5" / 165mm

Weight: 180 lbs. / 85 kgs.

Steer Wheel: 7" / 180mm

Polyurethane Load Rollers: 2.9" / 74 mm

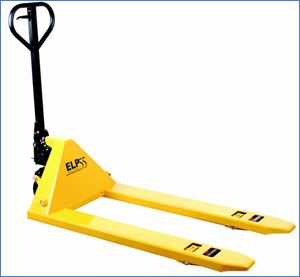

ECO ELP "Entry Level"



-Private label application at the factory

-Powder Coat Paint Finish in your own custom color

-Robotic Welds throughout

-Quality Construction at Competitively Prices











Specifications:



Load Capacity: 5,500 lbs. / 2500 kg

Fork Length: 48" / 1220 mm

Overall Fork Widths: 20.5" - 27"/ 521- 685 mm

Lowered Fork Height: 2.9" / 75mm

Raised Fork Height: 7.8" / 200mm

Fork Width: 6.5" / 165mm

Weight: 180 lbs. / 85 kgs.

Steer Wheel: 7" / 180mm

Polyurethane Load Rollers: 2.9" / 74 mm



For Pricing and Availability Call 905-898-2113 or Toll Free 1-888-886-8816
