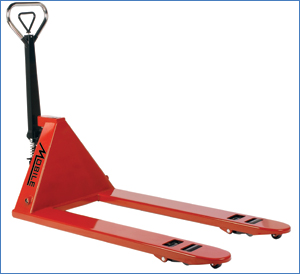

Mobile MLX55 Pallet Truck
The Mobile ML55 has long been an industry leading pallet
truck. However, Mobile has improved its most popular truck
and is proud to introduce the new MLX55. The MLX55 features
the same durability and versatility while adding an additional
foot release mechanism, a unique pump piston dust cap, an
improved bell crank design, and incorporates one piece
reinforced forks to provide greater strength.
Specifications:
Load Capacity: 5,500 lbs. / 2500 kg
Fork Length: 32", 36", 42", 48" 813 / 915 / 1067 / 1220 mm
Overall Fork Widths: 20.5" - 27"/ 521- 685 mm
Lowered Fork Height: 2.9" / 75mm
Raised Fork Height: 7.8" / 200mm
Fork Width: 6.5" / 165mm
Weight: 180 lbs. / 85 kgs.
Steer Wheel: 7" / 180mm Polyurethane Load Rollers: 2.9" / 74 mm

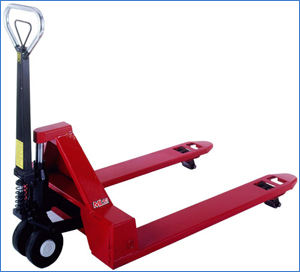

Mobile Miney "Low Profile"
The "MINEY" Low Profile Pallet Truck was designed specifically
for those 4-way Pallets used by businesses such as the
Grocery industry. Featuring a 2" lowered height, this model
comes standard with a 48" fork length and a 32" overall fork
width to suit the 4-way Pallet. This unit features standard
Polyurethane Steer Wheels and Steel Load Rollers.
Specifications:
Load Capacity: 4,500 lbs. / 2400 kg
Fork Length: 48" / 1220 mm
Overall Fork Widths: 32 "/ 813 mm
Lowered Fork Height: 2" / 51mm
Raised Fork Height: 5.5" / 140mm
Fork Width: 6.5" / 165mm
Weight: 180 lbs. / 85 kgs.
Steer Wheel: 7" / 180mm
Polyurethane Load Rollers: 2.9" / 74 mm Steel

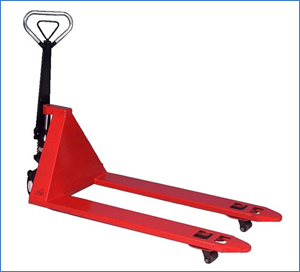

Mobile Mini "Low Profile"
The "MINI" Low Profile Pallet Truck features a 2" lowered
height for handling pallets, skids and containers that are too
low for the standard 2.9" lowered height of the ML55. Available
in all of the Mobile standard Pallet Truck fork sizes, these units
can also be custom sized to suit specific applications.
Specifications:
Load Capacity: 4,500 lbs. / 2400 kg
Fork Length: 48" / 1220 mm
Overall Fork Widths: 20.5" - 27"/ 521- 685 mm
Lowered Fork Height: 2" / 51mm
Raised Fork Height: 5.5" / 140mm
Fork Width: 6.5" / 165mm
Weight: 180 lbs. / 85 kgs.
Steer Wheel: 7" / 180mm
Polyurethane Load Rollers: 2.9" / 74 mm Steel

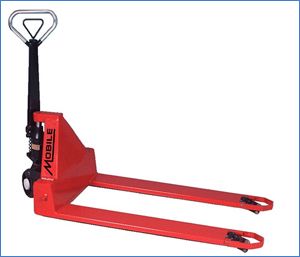

Mobile MO "Super Low Profile"
The "MO" Super Low Profile Pallet Truck is the lowest profile
Pallet Truck on the market today. With a 1.5" lowered height,
this unit is ideal for handling super low profile applications.
The MO comes in any of the standard fork length and width
and can be custom sized for specific applications. the super
lowered height this unit is rated at a maximum capacity of
1,500 lbs.
Specifications:
Load Capacity: 1,500 lbs. / 680 kg
Fork Length: 32", 36", 42", 48"-813 / 915 / 1067 / 1220 mm
Overall Fork Widths: 20.5" - 27"/ 521- 685 mm
Lowered Fork Height: 1.5" / 38mm
Raised Fork Height: 5" / 127mm
Fork Width: .5" / 165mm
Weight: 180 lbs. / 85 kgs.
Steer Wheel: 7" / 180mm
Polyurethane Load Rollers: 1.5" / 38 mm Steel
Mobile ML70 Heavy Duty
The beefed up version of the ML55, the ML70 is designed to
handle extra heavy applications. Durable, versatile and easy
to use and maintain. This truck provides exceptional
maneuverability in compact areas and features a reinforced
design and Steel Steer Wheels and Load Rollers to handle
extreme load.
Specifications:
Load Capacity: 7,000 lbs. / 3175 kg
Fork Length: 32", 36", 42", 48" 813 / 915 / 1067 / 1220 mm
Overall Fork Widths: 20.5" - 27"/ 521- 685 mm
Lowered Fork Height: 2.9" / 75mm
Raised Fork Height: 7.8" / 200mm
Fork Width: 6.5" / 165mm
Weight: 180 lbs. / 85 kgs.
Steer Wheel: 7" / 180mm
Steel Load Rollers: 2.9" / 74 mm Steel

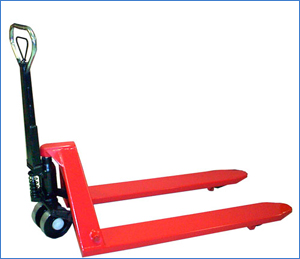

Mobile ML100 Super Heavy Duty
Mobile has designed a reinforced Pallet Truck specifically
designed for "super heavy duty applications. This truck
provides exceptional maneuverability in compact areas,
features a re-buildable state-of-the-art hydraulic pump and
comes in a variety of standard sizes.
Specifications:
Load Capacity: 10,000 lbs. / 4535 kg
Fork Length: 32", 36", 42", 48" 813 / 915 / 1067 / 1220 mm
Overall Fork Widths: 20.5" - 27"/ 521- 685 mm
Lowered Fork Height: 3.5" / 89mm
Raised Fork Height: 7.8" / 200mm
Fork Width: 6.5" / 165mm
Weight: 300 lbs. / 136 kgs.
Steer Wheel: 7" / 180mm
Steel Load Rollers: 2.9" / 74 mm Steel

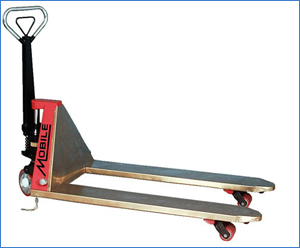

Mobile ML55-SR Spark Resistant
The Mobile ML55 has long been an industry leading pallet
truck. However, Mobile has improved its most popular truck
and is proud to introduce the new MLX55. The MLX55 features
the same durability and versatility while adding an additional
foot release mechanism, a unique pump piston dust cap, an
improved bell crank design, and incorporates one piece
reinforced forks to provide greater strength.
Specification:
Load Capacity: 5,500 lbs. / 2500 kg
Fork Length: 32", 36", 42", 48" 813 / 915 / 1067 / 1220 mm
Overall Fork Widths: 20.5" - 27"/ 521- 685 mm
Lowered Fork Height: 2.9" / 75mm
Raised Fork Height: 7.8" / 200mm
Fork Width: 6.5" / 165mm
Weight: 180 lbs. / 85 kgs.
Steer Wheel: 7" / 180mm
Polyurethane Load Rollers: 2.9" / 74 mm

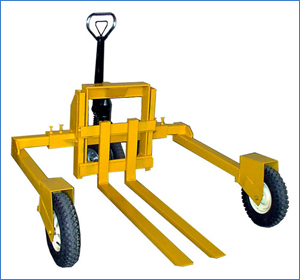

Mobile MST30 Straddle Truck
- Transports loads on uneven ground
- Straddles Pallets/Loads up to 48" wide
- 3-Function Control Handle (Lift-Neutral-Lower)
Specifications:
Load Capacity: 2,500 lbs. / 1134 kg
Fork Length: 42" / 1067mm
Legs Adjust: 34" - 50" 863mm - 1270mm
Lowered Fork Height: 3" / 76mm
Raised Fork Height: 7.75" / 197mm Tires: 12" / 305mm Pneumatic
