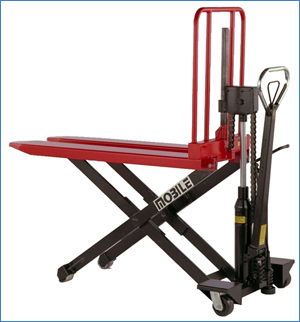

MPS25 MOBILE MANUAL SCISSOR LIFT

The Mobile MPS25 Manual Scissor Lift is a manually operated

truck designed to handle applications such as lifting and

transporting skids and bottomless containers, loading and

unloading conveyor systems, and is also perfectly suited as a

mobile work station.

Specifications:

Load Capacity: 2,500 lbs. / 1134 kg

Lowered Height: 3.5" / 89 mm

Raised Height: 31.5" / 800 mm

Overall Fork Width: 20.5" or 27" / 521mm or 686mm

Fork Width x Length: 7" x 48" / 178mm x 1219mm

Casters: 4" x 2" Phenolic / 102mm x 51mm

Phenolic Backrest Height: 30" / 762mm

Rollers: 3" x 2" / 76mm x 51mm Nylon

Weight: 320lbs / 145kg

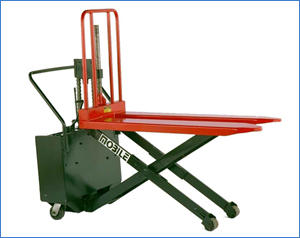

BPS25 MOBILE BATTERY SCISSOR LIFT

The Mobile BPS25 Battery Scissor Lift is a battery operated

truck designed to handle applications such as lifting and

transporting skids and bottomless containers, loading and

unloading conveyor systems, and is also perfectly suited as a

mobile work station.

Specifications:

Load Capacity: 2,500 lbs. / 1134 kg

Lowered Height: 3.5" / 89 mm

Raised Height: 31.5" / 800 mm

Overall Fork Width: 20.5" or 27" / 521mm or 686mm

Fork Width x Length: 7" x 48" / 178mm x 1219mm

Casters: 4" x 2" Phenolic / 102mm x 51mm

Phenolic Backrest Height: 30" / 762mm

Rollers: 3" x 2" / 76mm x 51mm Nylon

Weight: 450lbs / 204kg

MPS25-SS MOBILE STAINLESS STEEL MANUAL SCISSOR LIFT

The Mobile MPS25-SS Stainless Steel Manual Scissor Lift is a

manually operated truck that is specifically designed for clean

room environments. Able to handle applications such as lifting

and transporting skids and bottomless containers, loading and

unloading conveyor systems.

Specifications:

Load Capacity: 2,500 lbs. / 1134 kg

Lowered Height: 3.5" / 89 mm

Raised Height: 31.5" / 800 mm

Overall Fork Width: 20.5" or 27" / 521mm or 686mm

Fork Width x Length: 7" x 48" / 178mm x 1219mm

Casters: 4" x 2" Phenolic / 102mm x 51mm

Phenolic Backrest Height: 30" / 762mm

Rollers: 3" x 2" / 76mm x 51mm Nylon

Weight: 320lbs / 145kg
