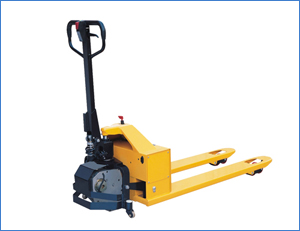

ESET22 "Semi Electric" PALLET TRUCK

Designed with safety first, the Mobile self propelled

line of electric pallet trucks that are self propelled and

feature manual pump operation.

Specifications:

Capacity: 2,200 Lbs.

Raised Height: 8"

Lowered Height: 3.3"

Fork Length: 48"

Overall Fork Width: 20.5" or 27" O.D.

Turning Radius: 67"

Drive Wheel: 10" Diameter Polyurethane

Load Rollers: 3" Diameter Polyurethane

Travel Speed: 1.6-2.4 mph with load

Battery Voltage: 24 volt (4 batteries)

Charger: 12V / 10A

Weight: 330 lbs.

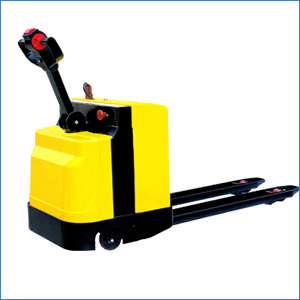

ESPT44 Self Propelled Pallet Truck

Designed with safety first, the Mobile self propelled line of

electric pallet trucks are self propelled. The ESPT features

a dead man brake for added safety.

Specifications:

Capacity: 4,400 lbs.

Raised Height: 8"

Lowered Height: 3.3"

Fork Length: 48"

Overall Fork Width: 20.5" or 27" O.D.

Turning Radius: 80"

Drive Wheel: 10" Diameter Polyurethane

Load Rollers: 3" Diameter Polyurethane

Travel Speed: 2.75 mph with load

Travel Speed: 4 mph without load

Lift Motor Power: 2 kw

Battery Voltage: 24 volt (4 batteries)

Charger: 12V / 10A

Weight: 1,015 lbs.

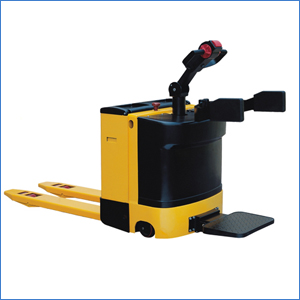

ESPT44-R Self Propelled Pallet Truck

Designed with safety first, the Mobile self propelled line of

electric pallet trucks are self propelled. The ESPT features a

Ride-On Platform and dead man brake for added safety.

Specifications:

Capacity: 4,400 lbs.

Raised Height: 8"

Lowered Height: 3.3"

Fork Length: 48"

Overall Fork Width: 20.5" or 27" O.D.

Turning Radius: 80"

Drive Wheel: 10" Diameter Polyurethane

Load Rollers: 3" Diameter Polyurethane

Travel Speed: 2.75 mph with load

Travel Speed: 4 mph without load

Lift Motor Power: 2 kw

Battery Voltage: 24 volt (4 batteries)

Charger: 12V / 10A

Weight: 1,015 lbs.
