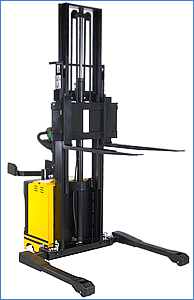

APS44-63 'All Purpose' Self-Propelled Stacker



Designed with safety first, Mobile self propelled line of stackers feature an



emergency "dead man stop" button; automatically breaking when the drive



switch is released and are available in a variety of capacities and lifting heights.





Specifications:



Capacity: 4400 lbs

Raised Height: 63"

Mast Height: 2.5"

Lowered Height: 2.5"

Fork Size: 4" x 42"

Forks Adjust: 8"-34" O.D.

Straddle Legs(fixed): 60" O.D.

Straddle Legs(fixed): 51" I.D.

Overall Length: 80"(94" w/ride-on)

Turning Radius: 69"

Drive Wheel: 10" dia. Polyurethane

Load Rollers: 4" dia. Polyurethane

Travel Speed(with load): 2.5mph

Travel Speed(without load): 3.5mph

Battery Voltage: 24 volt

                                                                    Battery Capacity: 240Ah

                                                                    Lift Motor Power: 2.2kw

                                                                    Charger: 24 volt

                                                                    Weight: 2110 lbs

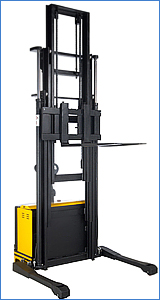

HLS33-209 'High Lift' Self-Propelled Stacker



Designed with safety first, Mobile self propelled line of stackers feature an



emergency "dead man stop" button; automatically breaking when the drive switch is



released. Featuring a triple mast and lifting heights up to an amazing 209".





Specifications:



Capacity: 3300 lbs

Raised Height: 209"

Mast Height: 91.5"

Lowered Height: 2.5"

Fork Size: 4" x 42"

Forks Adjust: 8"-34" O.D.

Straddle Legs(fixed): 46"-51" I.D.

Straddle Legs(fixed): 55"-60" O.D.

Overall Length: 76"

Turning Radius: 64"

Drive Wheel: 10" dia. Polyurethane

Load Rollers: 4" dia. Polyurethane

Travel Speed(with load): 2.5mph

Travel Speed(without load): 3.5mph

Battery Voltage: 24 volt

Battery Capacity: 275Ah

Lift Motor Power: 2.2kw

Charger: 24 volt

Weight: 2060 lbs

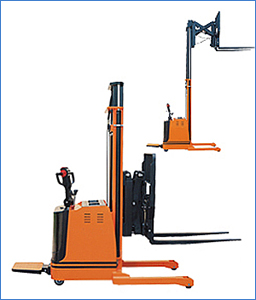

RTS 'Reach Truck' Self-Propelled Stacker



Designed with safety first, Mobile self propelled line of stackers



feature an emergency "dead man stop" button; automatically



breaking when the drive switch is released. Featuring a ride-on



operator platform, fork tilt, and a reach distance of 19.5".





























Specifications:



RTS22-98

Capacity: 2200lbs

Raised Height: 98"

Travel Speed (with load): 2.5mph

Travel Speed (without load): 3.4mph

Lift Motor Power: 2.2kw

Weight: 3420lbs



RTS22-118

Capacity: 2200lbs

Raised Height: 118"

Travel Speed (with load): 2.6mph

Travel Speed (without load): 3.7mph

Lift Motor Power: 3kw

Weight: 3615lbs
